Maretron TLA100
4.200,00 kr
Artikelnummer: TLA100-01
EAN: 873804000091
Enhet: Styck
Logga in för att se lagersaldo
Tanknivåadapter för analoga givare till NMEA 2000.

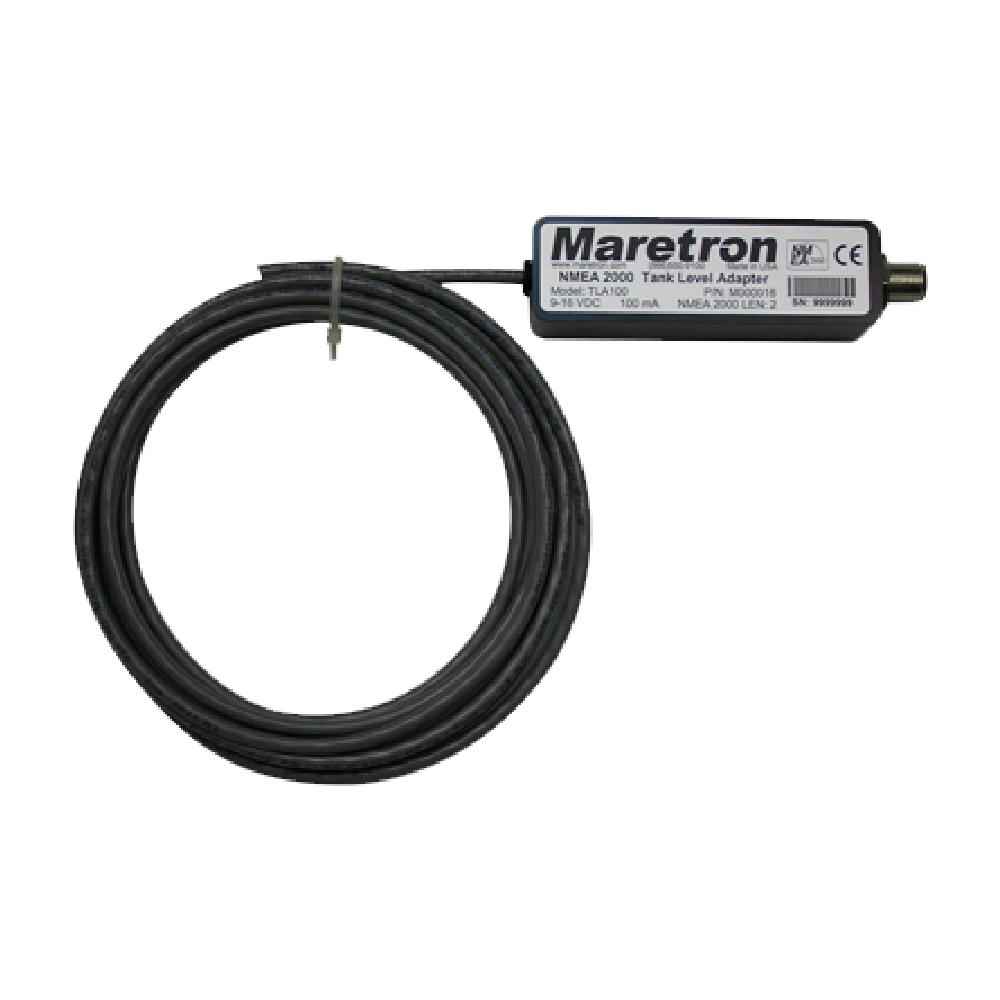

MARETRON TLA100 är en adapter för att omvandla data från resistiva tankgivare till NMEA 2000®. Det gör det möjligt att se tanknivån överallt på båten där det finns en Maretron-display, t.ex. DSM410.
TLA100 är kompatibel med både den Amerikanska standarden (240-30 ohm) och Europeiska standarden (10-180 ohm) för resistiva givare. Faktum är att TLA100 kan kalibreras för alla värden mellan 0 och 300 ohm.
Till skillnad mot de flesta analoga tankgivare, kan TLA100 kalibreras för oregelbundna tankformer, så att du vet den korrekta nivåen i tanken. Det går äen att använda TLA100 tillsammans med en analog mätare samtidigt som data skickas till NMEA 2000.
Funktioner
- NMEA 2000® Interface
- Adapts American standard (240-30 ohm) resistive senders to NMEA 2000® Network
- Adapts European standard (10-180 ohm) resistive senders to NMEA 2000® Network
- Calibrated for any Resistance Range from 0 to 300 Ohms or 300 to 0 Ohms
- Accommodates Irregularly Shaped Tankswith 16 Point Calibration
- 16 Programmable Tank Types Including Fuel, Fresh Water, Waste Water, Live Well
- Programmable Tank Number(s) Up to 16 per Tank Type
- Programmable Tank Capacity
- Works Alongside of Analog Gauges
- Can be Used Standalone without Analog Gauges
Products
| Part number | Description |
| TLA100-01 | Tank Level Adapter |
Specifications
| Parameter | Value | Comment |
| Accuracy | +/-2% | Does Not Include Inaccuracies of Analog Gauge or Sender |
| Resolution | +/-1% | Worst Case (Resolution Better at High Resistance Values) |
| Number of Tank Types | 16 | Fuel, Fresh Water, Waste Water, Live well, Oil, etc. |
| Number of Tanks per Tank Type | 16 | 16 Tanks per Tank Type Numbered 0-15 |
| American Standard Senders | 240-30 ohms | Standard Sender Types are User Selectable |
| European Standard Senders | 10-180 ohms | Standard Sender Types are User Selectable |
| Calibration Resistance Range | 0-300 ohms | Non-Standard Sender Calibration |
| Support for Irregularly Shaped Tanks | Yes | Can be Calibrated for any Shape Tank |
| Programmable Tank Capacity | Yes | Allows Displays to Calculate Amount Remaining |
| Analog Gauge Support | Yes | Can be Used With or Without Analog Gauges |
Certifications
| Standard | Comment |
| NMEA 2000® Standard | Level B+ |
| Maritime Navigation and Radio Communication Equipment & Systems | IEC 61162-3 |
| Maritime Navigation and Radiocommunication Equipment & Systems | IEC 60945 |
| FCC and CE Mark | Electromagnetic Compatibility |
NMEA 2000® Parameter Group Numbers (PGNs)
| Description | PGN # | PGN Name | Default Rate |
| Periodic Data PGNs | 127505 | Fluid Level | 0.4 Times/Second |
| Response to Request PGNs | 126464 126996 126998 |
PGN List (Transmit and Receive) Product Information Configuration Information |
N/A |
| Protocol PGNs | 059392 059904 060928 065240 126208 |
ISO Acknowledge ISO Request ISO Address Claim ISO Address Command NMEA Request/Command/Acknowledge |
Electrical
| Parameter | Value | Comment |
| Operating Voltage | 9 to 16 Volts | DC Voltage |
| Power Consumption (Maximum) | <100mA | Maximum Current Drain |
| Load Equivalence Number (LEN) | 2 | NMEA 2000® Spec. (1LEN = 50 mA) |
| Reverse Battery Protection | Yes | Indefinitely |
| Load Dump Protection | Yes | Energy Rated per SAE J1113 |
Mechanical
| Parameter | Value | Comment |
| Size | 3.9” x 1.2” x 1.0” (99mm x 30mm x 25mm) | Excluding NMEA 2000® Connector & Cable |
| Weight | 9 oz. (255g) | |
| Mounting | Any Orientation |
Environmental
| Parameter | Value |
| IEC 60945 Classification | Exposed |
| Degree of Protection | IP67 |
| Operating Temperature | -25°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 93%RH @40° per IEC60945-8.2 |
| Vibration | 2-13.2Hz @ ±1mm, 13.2-100Hz @ 7m/s2 per IEC 60945-8.7 |
| Rain and Spray | 12.5mm Nozzle @ 100liters/min from 3m for 30min per IEC 60945-8.8 |
| Solar Radiation | Ultraviolet B, A, Visible, and Infrared per IEC 60945-8.10 |
| Corrosion (Salt Mist) | 4 times 7 days @ 40°C, 95%RH after 2 hour Salt Spray Per IEC 60945-8.12 |
| Electromagnetic Emission | Conducted and Radiated Emission per IEC60945-9 |
| Electromagnetic Immunity | Conducted, Radiated, Supply, and ESD per IEC 60945-10 |
| Safety Precautions | Dangerous Voltage, Electromagnetic Radio Frequency per IEC 60945-12 |
